Oil and Fuel Suction Wire Braided Hose

Material: NBR/yarn/CSM, Oil and Fuel Suction Wire Braided Hose
  • product origin:

    China
  • item no.:

    GY-EO008
  • shipping port:

    Xiamen Port
Inquiry now
Product Details

Oil and Fuel Suction Wire Braided Hose

Part No.:  GY-EO008

Part Type:  Oil Hose

Range of Size:  ¢4~¢20 mm

Material Conformation:  NBR/yarn/CSM

Meet SPEC.:  SAE J30 R6, SAE J30 R7



Main Performance:

1. Oil resistance:  ATF,  ASTM NO.1,  ASTM NO.3

2. Aging resistance:  120℃; Low temp resistance: -40℃

3. Fuel resistance:  FUEL A/B/C/D

4. Burst pressure:  >40kgf/cm2

5. Flammability resistance:  Self extinguish at 10 secs

6. Ozone resistance:  50pphm*48H


Appliance Markets:

Power Steering Hoses of Automobile.



Production Line Photo of Braided Rubber Hose



How Does Goodyou Control Quality of Braided Rubber Hose
braided rubber hoses quality control

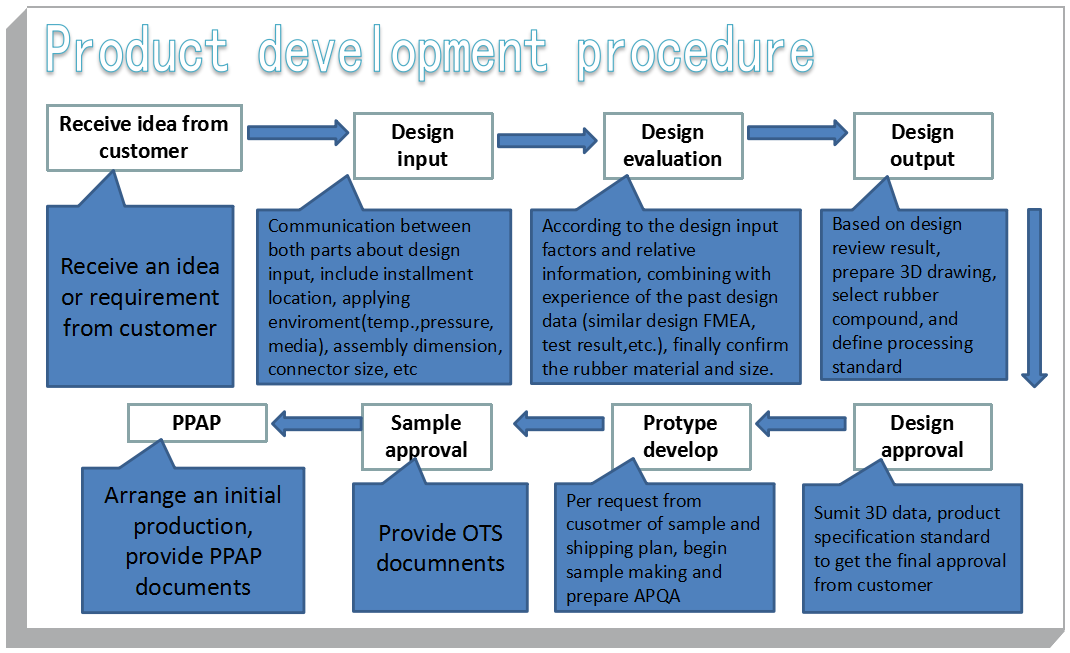

Our Process Procedure from Receiving Requirement of Customer



About Us
Goodyou supply rubber products in an extensive range of size and types. Our most popular products include fuel hose, air hose, oil hose, water hose, wire harness sleeves, dust proof sleeves, rubber to metal bonding, etc. As a customer driven company, Goodyou always strive for excellence in service and quality. With vast experience in rubber engineering, we are capable to provide customers with solutions to various applications.



Why Choose Goodyou
We develop products only when we fully understand your application needs.
We offer OEM service
We do good after-sale service
We promise to reply your inquiry within 24hours.

Our Commitment
High quality, Low cost, Strong deliver ability, Professional service.



FAQ
1.What is your minimum order?
Because all products are custom made, the minimum order will depend on how much the batch of rubber will yield for the part you are requesting.

2. Which kinds of materials is available to GOODYOU?
We work with many different materials, including EPDM, NBR, CR, ACM, ECO, FKM, silicone, SBR, NR, and flexible PVC & PU, and various types of sponge rubber.

3. What types of rubber parts do you supply?
We supply custom molded, extruded, injected rubber parts. We also accept rubber mold orders for those customers who have their own rubber production lines.

For more FAQ, welcome to visit SERVICE

Send a Message
If you have any questions or inquiries, please leave us a message, we will reply you as soon as we can!
