Battery Cooling Silicone Hose For Fuel Cell Bus Electric Bus Hybrid Vehicles

Fuel cell hose used in electrical vehicle and FCB cooling system.


  • product origin:

    China
  • item no.:

    GY-FC003
  • shipping port:

    Xiamen City
  • MOQ:

    100
Inquiry now
Product Details

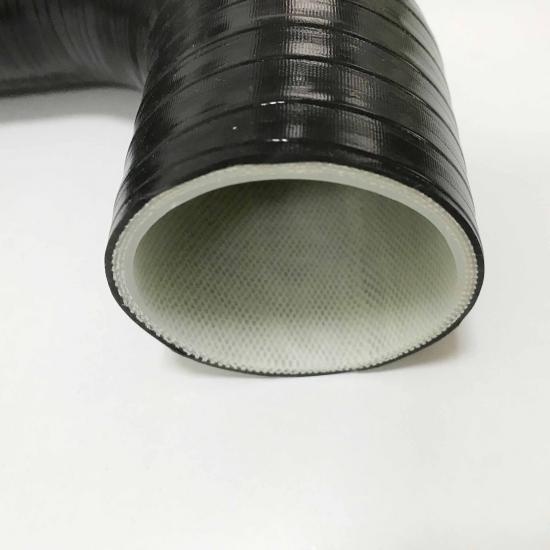

Battery Cooling Silicone Hose For Fuel Cell Bus Electric Bus Hybrid Vehicles


The bus cooling system absorbs heat from various systems associated with the hydrogen fuel cell engine and expels excess heat to the atmosphere. The silicone hose applied in this system is buit of food grade silicone as inner tube,

multiple plies of silicone reinforced with aramid fabric to enhance its high or negative pressure resistance. The outer walls use high-performance silicone that withstands high and low temperature ranging from -50~+260℃, and has excellent ozone, aging and weather resistance.



Result from the high cleaness requirement by the fuel cell, in addition to use food grade silicone liner, Goodyou cleans fuel cell hose using deionized water in dust-proof workshop to better control the particles.



Test Items Spec. Standards
Typical Temperature -55°C- 250°C
Hardness Shore A 55-75 HS
Tensile Min, Mpa 5.5
Elongation, Min, % 200

Oven Aging Conditions and Change Limits

Test on 70Hr/175°C
Hardness Shore A +10
Tensile, Max, % -15
Elongation, Max, % -40
Coolant Immersion Change limits Test on 70Hr at boiling point
Volume, % 0 to +40
Harness Shore A -10 to +10
Tensile, Max, % -25
Compression Set Test on 70Hr/125°C
Compression, Max, % 40


Simulant Used Time Temperature Max. Permissible Limit Result of 001 Comment
Distilled Water 7.0hr(s)   Reflux Temperature 20mg/sq.in <0.5mg/sq.in
Pass
Succeeding Extraction 2.0hr(s) Reflux Temperature
1mg/sq.in
<0.5mg/sq.in
Pass
n-Hexane 7.0hr(s) Reflux Temperature
175mg/sq.in
<22.6mg/sq.in
Pass
Succeeding Extraction 2.0hr(s) Reflux Temperature
4mg/sq.in
<1.3mg/sq.in
Pass
