Fuel Cell Coolant Silicone Hose For Fuel Cell Vehicles (FCVs)

Silicone hose lined with food grade silicone for delivering cooling water, oxygen gases, hydrogen in fuel cell powered vehicle applications.


  • product origin:

    China
  • item no.:

    GY-FC002
  • shipping port:

    Xiamen City
  • MOQ:

    100
Inquiry now
Product Details

Fuel Cell Coolant Silicone Hose For Fuel Cell Vehicles (FCVs)

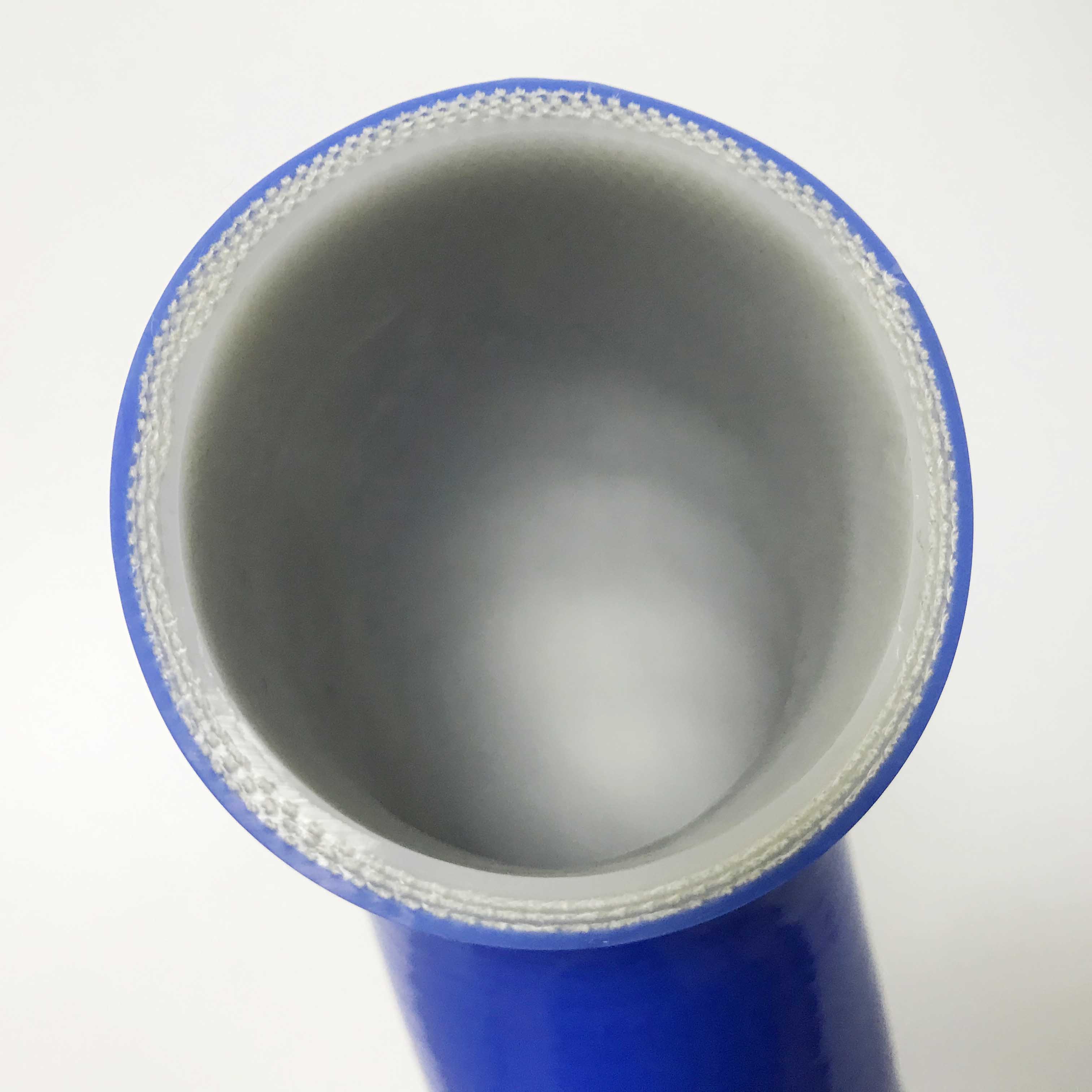

Fuel cell hose lined with food grade silicone tube is built to delivering cooling water, oxygen gases, hydrogen in fuel cell powered vehicle applications. Result from the high cleaness requirement by the fuel cell, in addition to use food grade silicone liner, Goodyou cleans fuel cell hose using deionized water in dust-proof workshop to better control the particles.


Fuel cell hose is overlaid with plies of silicone, reinforced with aramid cloth. The number of plies varying depending on working pressure, bore size and required wall thickness. We have tooling making ability in house, are available for fast action. We provide perfect personally tailored service to meet customers' demand.





Test Items Spec. Standards
Typical Temperature -55°C- 250°C
Hardness Shore A 55-75 HS
Tensile Min, Mpa 5.5
Elongation, Min, % 200

Oven Aging Conditions and Change Limits

Test on 70Hr/175°C
Hardness Shore A +10
Tensile, Max, % -15
Elongation, Max, % -40
Coolant Immersion Change limits Test on 70Hr at boiling point
Volume, % 0 to +40
Harness Shore A -10 to +10
Tensile, Max, % -25
Compression Set Test on 70Hr/125°C
Compression, Max, % 40


Simulant Used Time Temperature Max. Permissible Limit Result of 001 Comment
Distilled Water 7.0hr(s)   Reflux Temperature 20mg/sq.in <0.5mg/sq.in
Pass
Succeeding Extraction 2.0hr(s) Reflux Temperature
1mg/sq.in
<0.5mg/sq.in
Pass
n-Hexane 7.0hr(s) Reflux Temperature
175mg/sq.in
<22.6mg/sq.in
Pass
Succeeding Extraction 2.0hr(s) Reflux Temperature
4mg/sq.in
<1.3mg/sq.in
Pass
