Custom Hydrogen Fuel Cell Hose Silicone Hose Transporting Hydrogen and Oxygen

Goodyou provides custom silicone hoses lines for fuel supply, water cooling and air intake for fuel cell drives.
  • product origin:

    China
  • item no.:

    GY-SH009
  • shipping port:

    Xiamen City
Inquiry now
Product Details

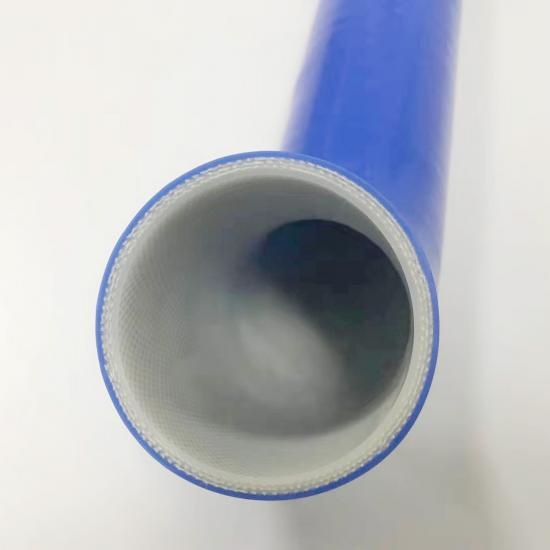

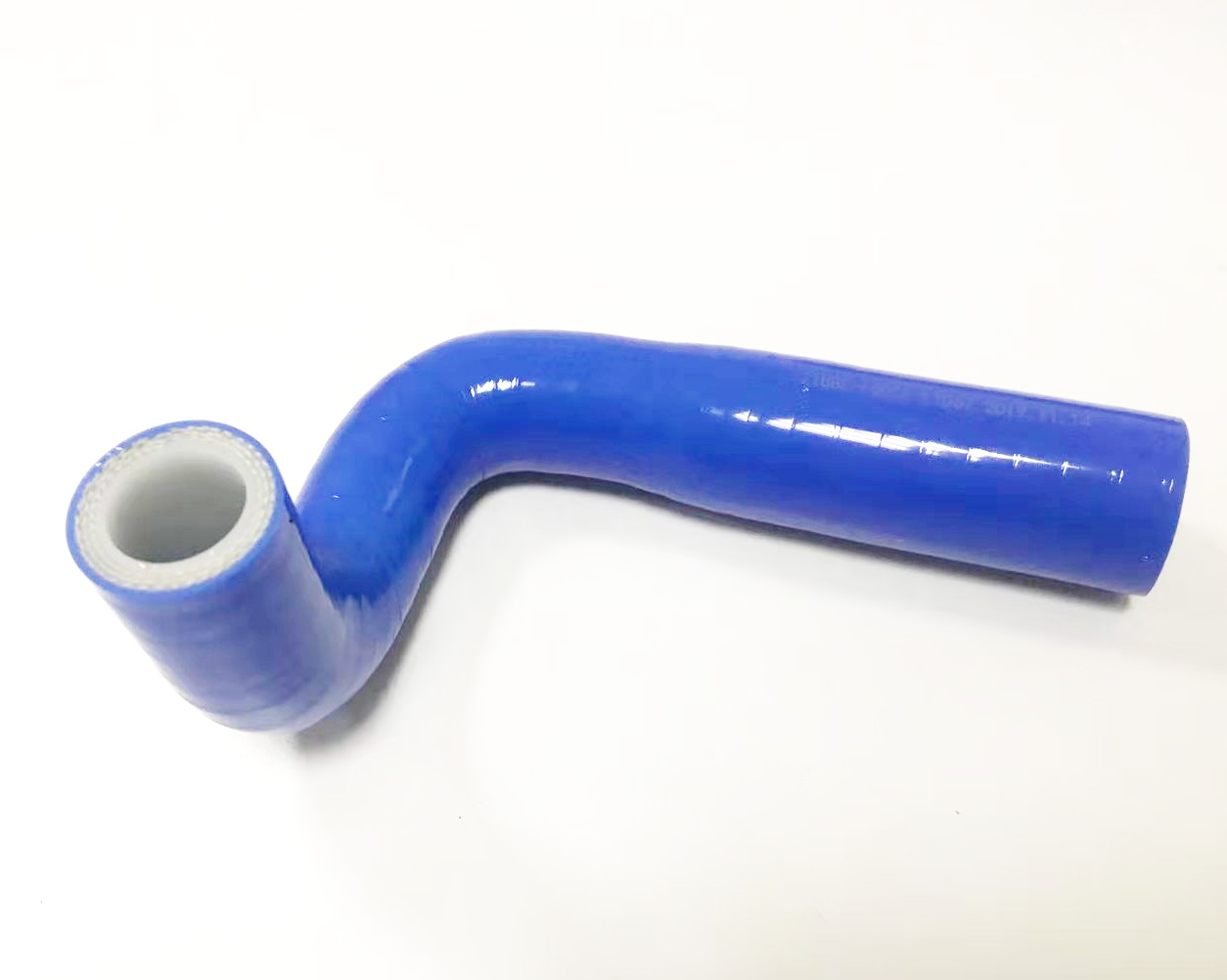

Custom Hydrogen Fuel Cell Hose Silicone Hose Transporting Hydrogen and Oxygen

Part No.: GY-SH009

Part Type: Custom Made Silicone Rubber Joses

Shape: Customized

Material Composition: Silicone Rubber meet FDA Certificate

Meet SPEC.: Meet SAE J20 R4 CLASS A


Application

Goodyou developes food grade silicone hoses for fuel cell and hybrid vehicles for filling fuel cell vehicles (FCVs) with hydrogen, cooling water. Result from the specific operating conditions of clear energy vehicles, the hose is designed to be flame retardant, low conductivity, and be clear enough for passing high-purity cooling water, must ensure that the functional capacity of the fuel cells is not jeopardized.




Test Items Spec. Standards
Typical Temperature -55°C- 250°C
Hardness Shore A 55-75 HS
Tensile Min, Mpa 5.5
Elongation, Min, % 200

Oven Aging Conditions and Change Limits

Test on 70Hr/175°C
Hardness Shore A +10
Tensile, Max, % -15
Elongation, Max, % -40
Coolant Immersion Change limits Test on 70Hr at boiling point
Volume, % 0 to +40
Harness Shore A -10 to +10
Tensile, Max, % -25
Compression Set Test on 70Hr/125°C
Compression, Max, % 40


Simulant Used Time Temperature Max. Permissible Limit Result of 001 Comment
Distilled Water 7.0hr(s)   Reflux Temperature 20mg/sq.in <0.5mg/sq.in
Pass
Succeeding Extraction 2.0hr(s) Reflux Temperature
1mg/sq.in
<0.5mg/sq.in
Pass
n-Hexane 7.0hr(s) Reflux Temperature
175mg/sq.in
<22.6mg/sq.in
Pass
Succeeding Extraction 2.0hr(s) Reflux Temperature
4mg/sq.in
<1.3mg/sq.in
Pass
